springcloud 服务与服务之间实现灰度发布基于Aspect

发布于2021-05-29 22:41 阅读(747) 评论(0) 点赞(20) 收藏(1)

灰度发布定义可查看我上一篇文章：基于zuul实现灰度发布

1、创建工程

创建三个工程：分别为：订单、eureka、user-server

（1）order服务

order服务提供方，提供两个服务，端口分别为：8080、8081，配置如下：


server:
  port: 8080
eureka:
  instance:
    metadata-map:
      version: v1
  client:
    service-url:
      defaultZone: http://localhost:7900/eureka
spring:
  application:
    name: order
---
spring:
  profiles: 8081
server:
  port: 8081
eureka:
  instance:
    metadata-map: #自定义元数据区
      version: v2

order服务为了测试提供一个controller，打印出各自的端口，代表访问到不同的机器。如下：


@SpringBootApplication
@RestController
public class OrderApplication {

    @Value("${server.port}")
    private String port;
    public static void main(String[] args) {
        SpringApplication.run(OrderApplication.class, args);
    }

    @RequestMapping
    public String test(){
        return "port:" + port;
    }
}

（2）eureka工程，就是一个普通的eureka server
（3）user-server工程

是另一个服务提供者。

调用关系图：

从图可看出use-server需要调用order服务。在调用接口时候需要实现灰度发布。

pom.xml配置如下：


<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.11.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.kingdee</groupId>
    <artifactId>user-server</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>user-server</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <spring-cloud.version>Hoxton.SR11</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>io.jmnarloch</groupId>
            <artifactId>ribbon-discovery-filter-spring-cloud-starter</artifactId>
            <version>2.1.0</version>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

启动类代码如下：


@SpringBootApplication
@RestController
public class UserServerApplication {

    public static void main(String[] args) {
        SpringApplication.run(UserServerApplication.class, args);
    }

    @LoadBalanced
    @Bean
    public RestTemplate restTemplate(){
        return new RestTemplate();
    }

    @RequestMapping
    public String test(){
        return "user-server";
    }
}

使用切面编程，增加RequestAspect类：


@Aspect
@Component
public class RequestAspect {

    @Pointcut("execution(* com.kingdee.userserver.controller..*Controller*.*(..))")
    private void anyMehtod() {

    }

    @Before(value = "anyMehtod()")
    public void before(JoinPoint joinPoint) {

        HttpServletRequest request = ((ServletRequestAttributes) RequestContextHolder.getRequestAttributes()).getRequest();
        String version = request.getHeader("version");

        // 灰度规则 匹配的地方 查db，redis ====
        if (version.trim().equals("v2")) {
            RibbonFilterContextHolder.getCurrentContext().add("version", "v2");
        } else if (version.trim().equals("v1")) {
            RibbonFilterContextHolder.getCurrentContext().add("version", "v1");
        }


    }
}

此时可看出被调用服务是需要配置元数据，可查看order的yml配置（order其实就是普通的一个基础服务，order其他配置可查看我的上一篇：基于zuul实现的灰度发布）：


server:
  port: 8080

eureka:
  instance:
    metadata-map:
      version: v1
  client:
    service-url:
      defaultZone: http://localhost:7900/eureka


spring:
  application:
    name: server-order

---
spring:
  profiles: 8081
server:
  port: 8081
eureka:
  instance:
    metadata-map:
      version: v2

controller类：


@RestController
@RequestMapping("/test")
public class TestCallOrderController {
    @Autowired
    private RestTemplate restTemplate;

    @GetMapping("/call")
    public String testCall() {
        ResponseEntity<String> forEntity = restTemplate.getForEntity("http://SERVER-ORDER/order/getPort", String.class);
        String body = forEntity.getBody();

        return body;
    }
}

yml配置文件：


server:
  port: 8001
eureka:
  client:
    service-url:
      defaultZone: http://localhost:7900/eureka
spring:
  application:
    name: user-server

2、测试

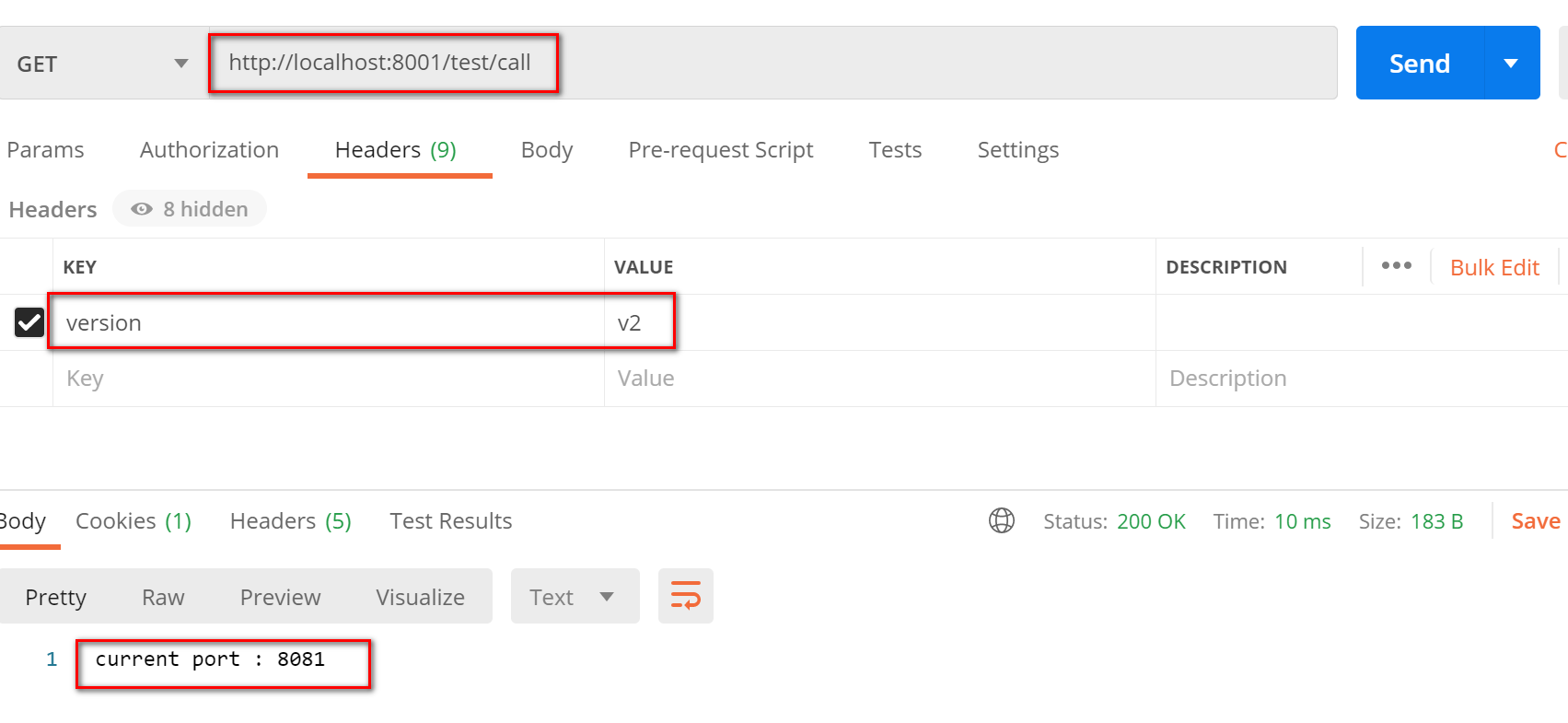

使用http://localhost:8001/test/call访问order接口，且在header上配置version=v2，则系统会永远只访问order服务元数据配置了version: v2的服务，如果header中的version配置成v1，则只访问order服务元数据配置了version: v1的服务，其他情况则使用默认的负载均衡规则（轮询）。
